Product Details

Product Name: Customized High Precision Plastic Injection Mold Aluminum Zinc Die Casting Die Mould Motorcycle/Auto/Car Part Molding

Shaping Mode：Plastic Injection Mould

Core & Cavity Steel: 2316# steel, S136, H13,718,SKD61,P20,S50C,45#steel,4Cr13, 3Cr13, Becu or based on customer's requiret

Mould base & Standard Component: P20, 4cr13, h13

Steel Hardness: HRC30-35 for base material; HRC45-48 for core and cavity material; HRC60-62 for special parts material

Plastic Material: ABS/PP/POM/TPU/TPE/PC/PA6/PA66/PC+ABS/PA6+GF/HIPS/PE/PVC etc.

Moud Precision:+/-0.01mm

Cavity Number: Single cavity, multi-cavity, and family moulds

Runner: Hot Runner / Cold Runner

Injection System: Pinpoint Gate, Edge Gate, Sub Gate, Film Gate, Valve Gate, Open Gate, etc.

Equipment: CNC,EDM, 3d coordinate measuring instrument,Machine,plastic machinery,etc

Surface Treatment: Polishing,Painting,Chroming,Anodizing, Brushing, Silk Screening,Water Transfering, Laser Cutting,Leather Covering,Texture,Sanblasting,Gilding,UV Painting…

Ejector System: Unscrew by motor, stripper plate, ejector sleeve, ejector pin

Lead Time:

-Tooling: 10-45 days;

-Sample: 3 days;

-Production time : 10-30 days

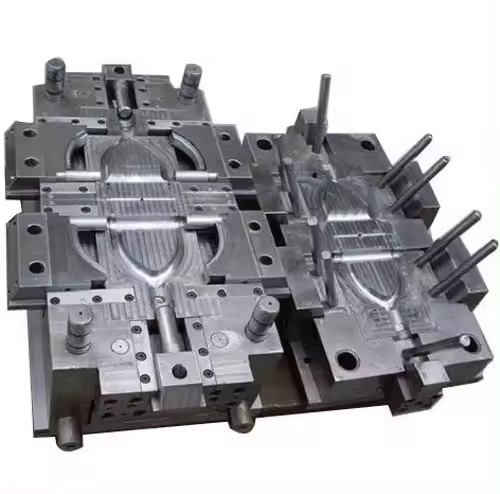

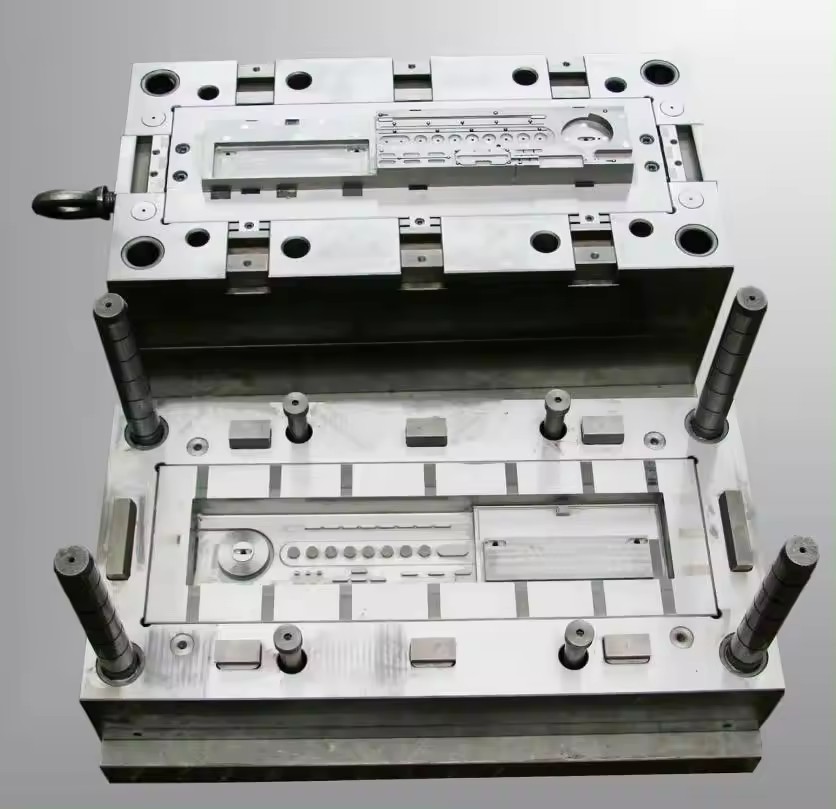

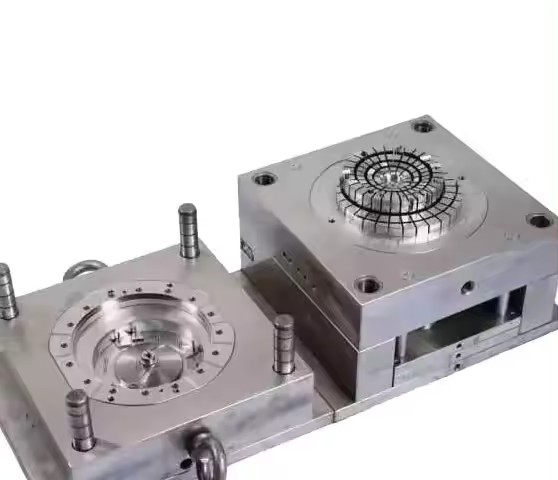

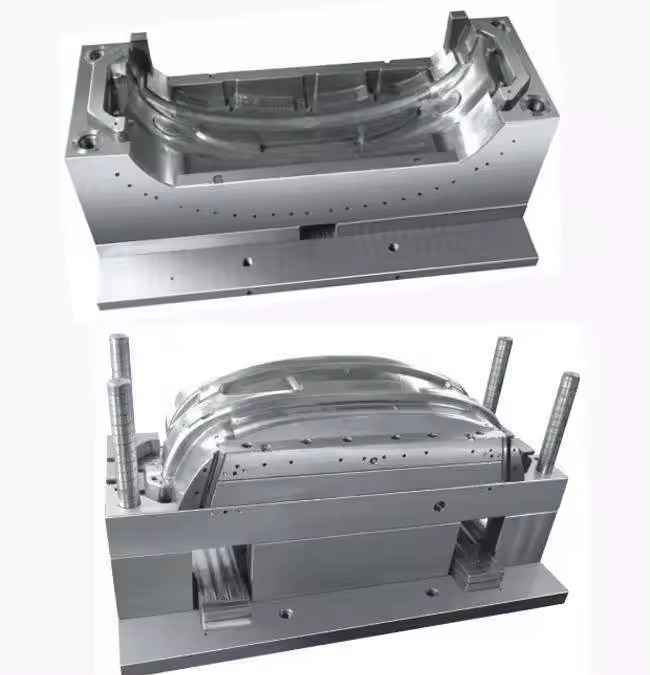

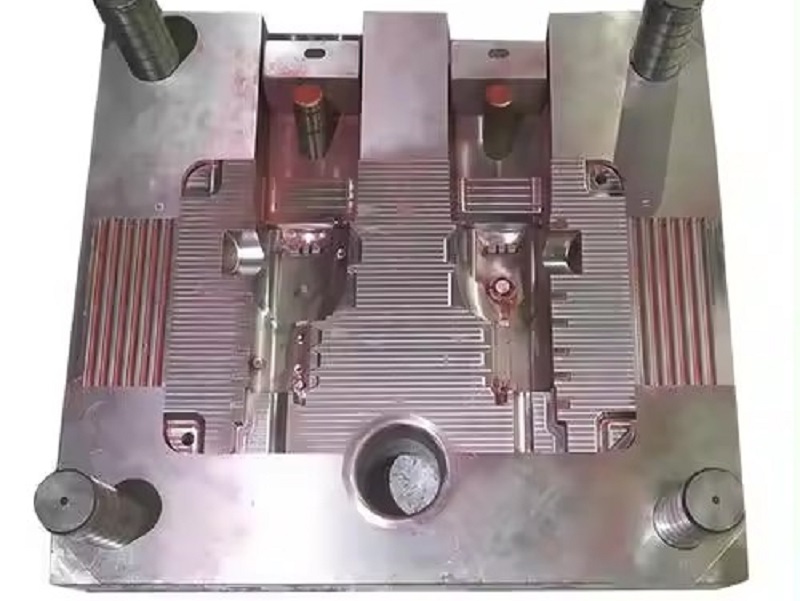

Product Photos:

plastic injection mould maker mold manufacturer vertical plastic injection molding machine plastic pallet injection molding machines used mold plastic injection plastic injection lego brick mold

INSERT MOLDING:
Insert molding is a custom injection molding process that encapsulates components in a plastic part. It is commonly used for plastic injection molded parts with molded-in metal features, such at strengthening members and threaded inserts.
OVERMOLDING:
Overmolding is a unique injection molding process that combines two or more components together.It is the best practice for the plastic manufacturing of multicolor and multi-layers products.
PROTOTYPE TOOLING:
Fast and cost-effective process to create aluminum or steel injection molds for quick turn injection molding.Ideal for rapid prototyping needs or validating product concept for production.

There are some plastic parts for reference：

Company ProfilePlastic injection molding is the preferred process for manufacturing plastic parts, as it is ideal for producing high volumes of low-cost plastic parts with high tolerance precision, repeatability and little to no finishing required.

We have 37 sets injection molding machines, includes the multi-color injection molding machines, the biggest one is 1650T. Our capability for Plastic part is up to 1500mm.

Supply Ability

Workflow after customer order is placed:

Mould Design Process:

Step 1: Analyze the product drawings

Step 2:Create the Design for Manufacturability (DFM) report

Step 3: Make the mould flow analysis

Step 4: Design tooling drawings

Step 5: Mould making

Once the mould making is finished, we’ll make several pieces of pre-production samples for test, if the dimensions are correct, then we will send the samples to customers for final confirmation. If the test failed, we will modify the mould or adjust the molding parameter to make new samples, and test it again. Once the samples are approval by customers, we will purchase the raw material and making quality inspection. Then mixing material, molding and trimming, we will make many times of inspection during the production. Finally we will arrange the assembly and packing. After whole order is ready, we will send the packing list to customer to arrange the shipment.

We can also provide double-color and triple-color injection molding

Double-color injection molding and triple-color injection molding process can make the appearance of the product more beautiful, and easy to change the color without painting, but the cost is expensive and the technical requirements are high.

Related products:

And we have10,000 level dust-free production workshop for biomedical products.Highly Welcome Custom Your Own Designs !!!

Why choose us

We seriously take care of the quality control from IQC to OQC, throughout each step of the production.

Let us show you our quality control:

For raw materials, we’ll do the IQC in time. All materials are procured only from the verified suppliers, who have implemented and maintain certified quality management systems in their plants.

With full certificates, such as RoHs, Reach, MSDS, FDA, LFGB, UL, EN549, BPA free, EN71, and so on;

For pre-production samples, we'll provide several pieces to our clients for assembly and function testing. We will seal the samples in time once they're approval.

For Bulk Production, we'll do the IPQCS & PQC (Multiple Sampling Inspection) during production and we'll do the FQC (Sampling

Inspection) after deburr or breaking sharp edges.In order to timely find problems, solve problems, reduce defective products,

reduce manufacturing costs.

After packing and assembling, we'll do the OQC (Sampling Inspection) to make sure the final goods are qualified.

Our Services

Surface Treatment
QC

Hot Tags : semi auto plastic injection molding machine phone case plastic injection mold plastic injection molding soldier toys plastic raw material for injection molding 1800 ton plastic injection molding machine
