Custom Processing Service ABS Shell Injection Molding Plastic Parts Mould

Product Name: Plastic Pet Inject Tube Aluminum Preform Mould Making Hanger Mold

Description:

1.This injection mold is made with several metal inserts and threaded cores. The metal inserts will be loaded by the robot before molding.

2.The steels for moldbases & core cavity inserts are supplied from LKM;

3.This injection mold is made at HASCO standards.

4.This injection mold is made with YUDO hot runner system.

5 The mold lifetime for one million shots,the cycle time very short.

Shaping Mode：Plastic Injection Mould

Core & Cavity Steel: 2316# steel, S136, H13,718,SKD61,P20,S50C,45#steel,4Cr13, 3Cr13, Becu or based on customer's requiret

Mould base & Standard Component: P20, 4cr13, h13 ,LKM Standard,DME Standard,HASCO Standard,FUTABA Standard,Self-made Standad ,etc.

Steel Hardness: HRC30-35 for base material; HRC45-48 for core and cavity material; HRC60-62 for special parts material

Plastic Material: Nylon6, Nylon66, PA6, PA66, PA6+GF, ABS, ABS+GF, ABS+PC, POM(Derlin), PP, PE, PC, PVC, PMMA(Acrylic),TRU,EPDM,NBR, Silicon,UHMWPE,PVDF,PTFE,ETFE,PFA,PCTFE,FEP,PVF,PSF, PEI, PSU,PPSU, PPS, PEEK, PAI, PI, PBI,etc.

Color: white,black,gray,green,blue,pink,yellow,golden,natural color and custom color,etc

Moud Precision:+/-0.01mm

Cavity Number: Single cavity, multi-cavity, and family moulds

Runner: Hot Runner / Cold Runner

Mold Life:100K-1000K shots

Injection System:  Pinpoint Gate, Edge Gate, Sub Gate, Film Gate, Valve Gate, Open Gate, etc.

InjectionMachine(DoubleColor):88T,90T,120T,168T,200T,250T,380T,420T,600T,800T,1000T,1200T,1500T,2200T,2800T,3000T

Equipment: Imported CNC equipment, EDM machines, Imported mirror wire cutting machines, High-speed precision engraving machines, Laser cutting machines, Sodick slow threading machines, Precision grinders, Plastic injection molding machines,Double color injection machines,etc

Surface Treatment: Polishing,Painting,Chroming,Anodizing, Brushing, Silk Screening,Water Transfering, Laser Cutting,Leather Covering,Texture,Sanblasting,Gilding,UV Painting…

Ejector System: Unscrew by motor, stripper plate, ejector sleeve,  ejector pin

Application: Electronics industry, Medical industry, Home appliance industry, Aerospace, Shipbuild industry, Household goods, Automobile industry, Machinery industry,Machinery industry,Semicoductor industry,Food processing, Robot industry,etc

Quanlity System:ISO 9001, RoHS Srandard, etc

Lead Time:

-Tooling: 10-45 days;

-Sample: 3 days;

-Production time : 10-30 days

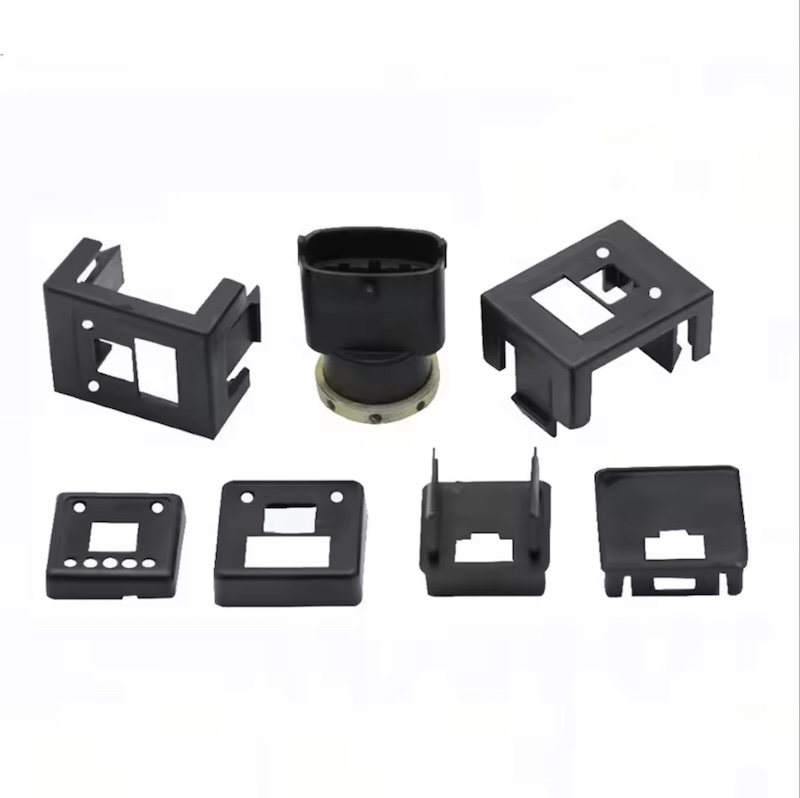

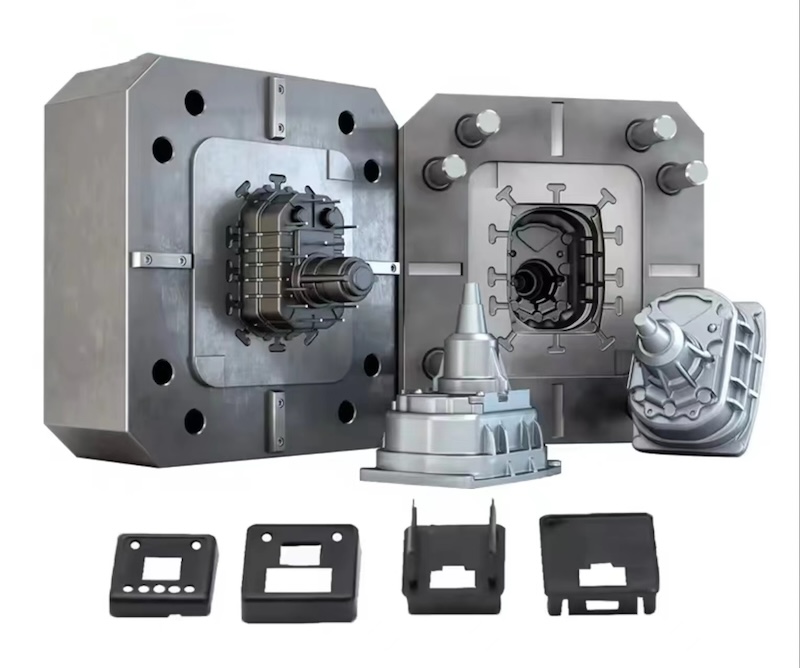

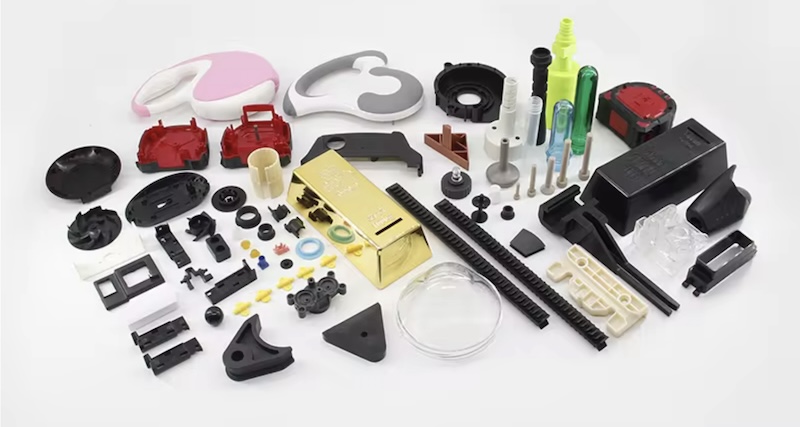

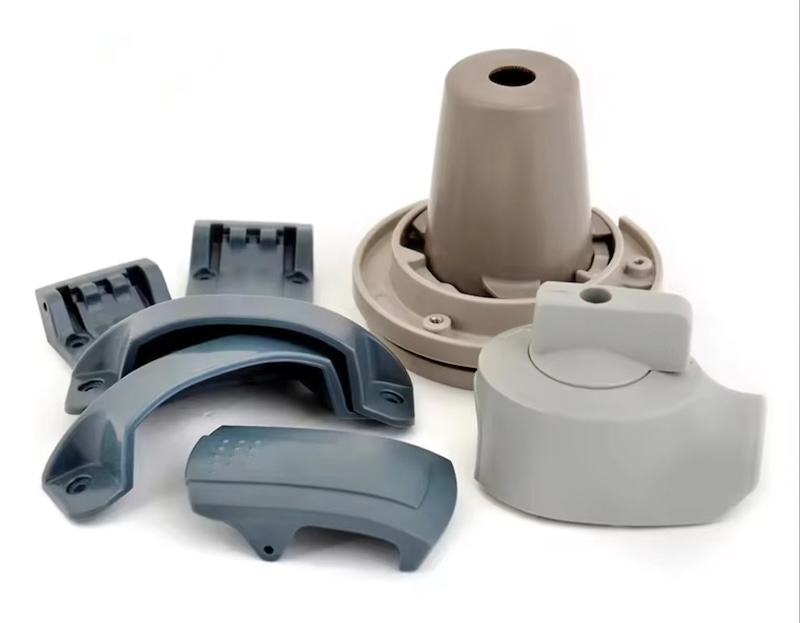

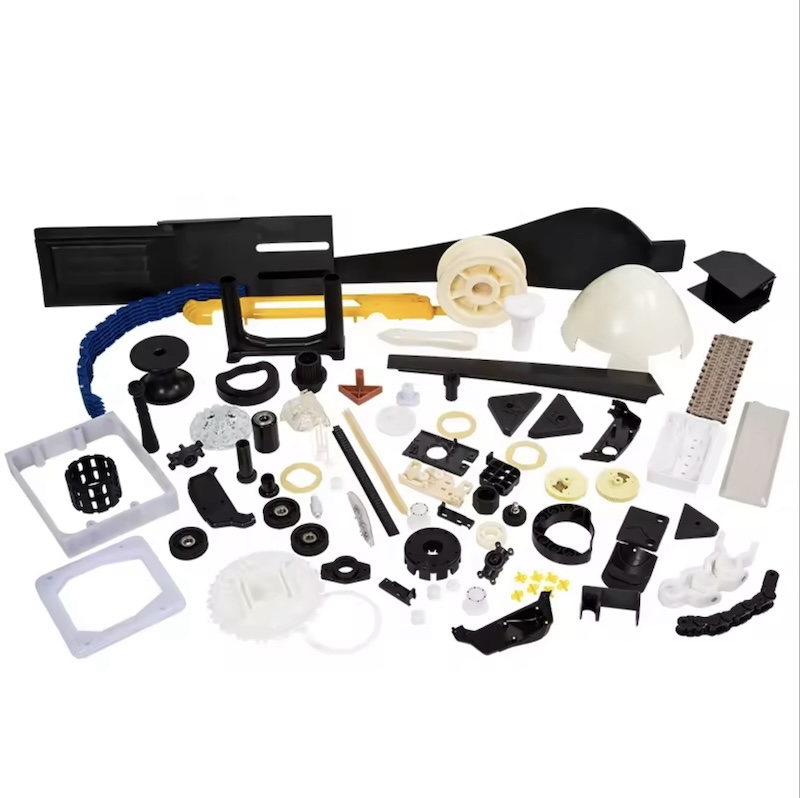

Product Photos:

---
