XIAMEN SENGKEN INDUSTRY&TRADE CO.,LTD.

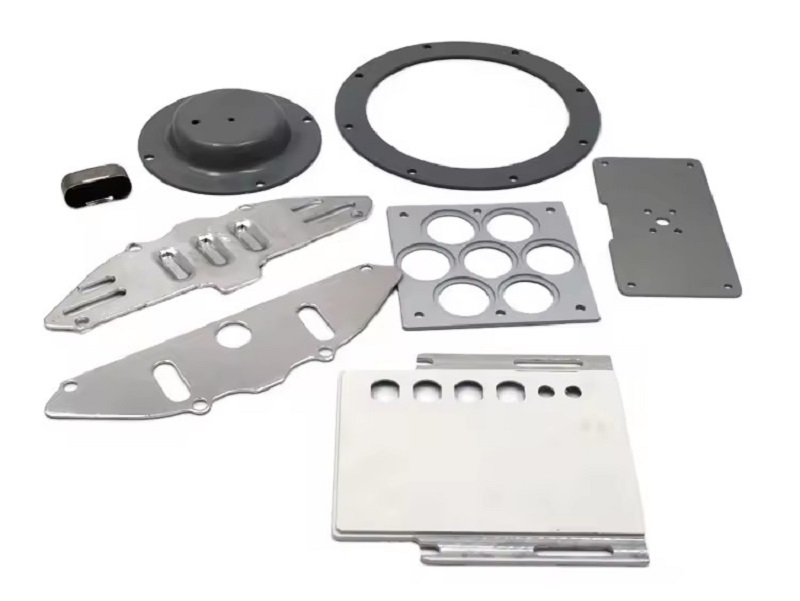

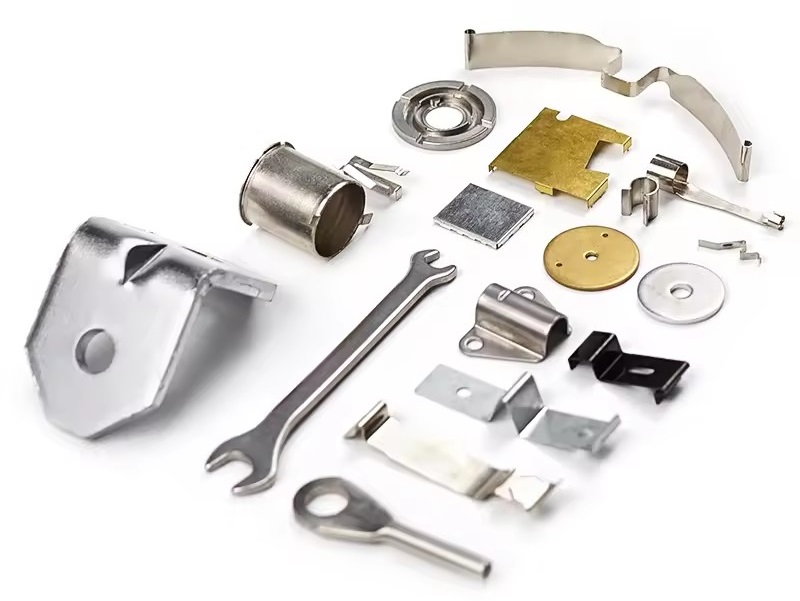

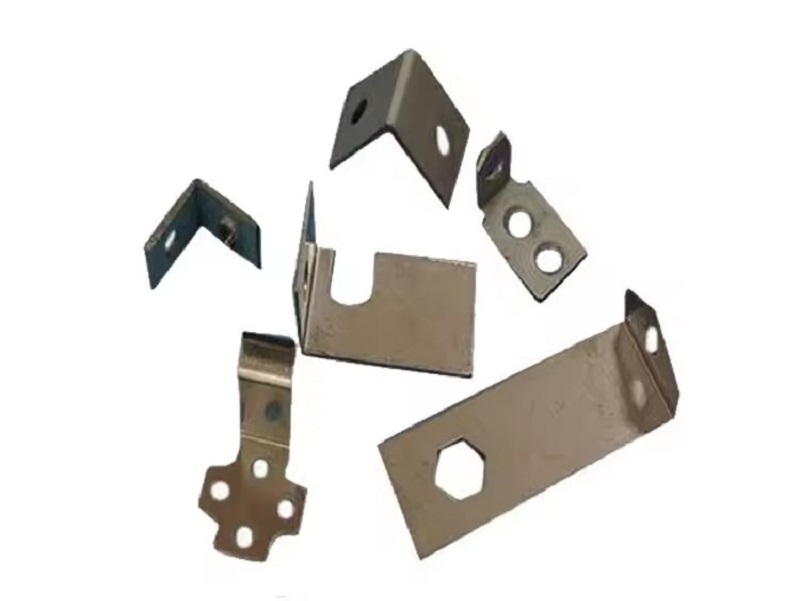

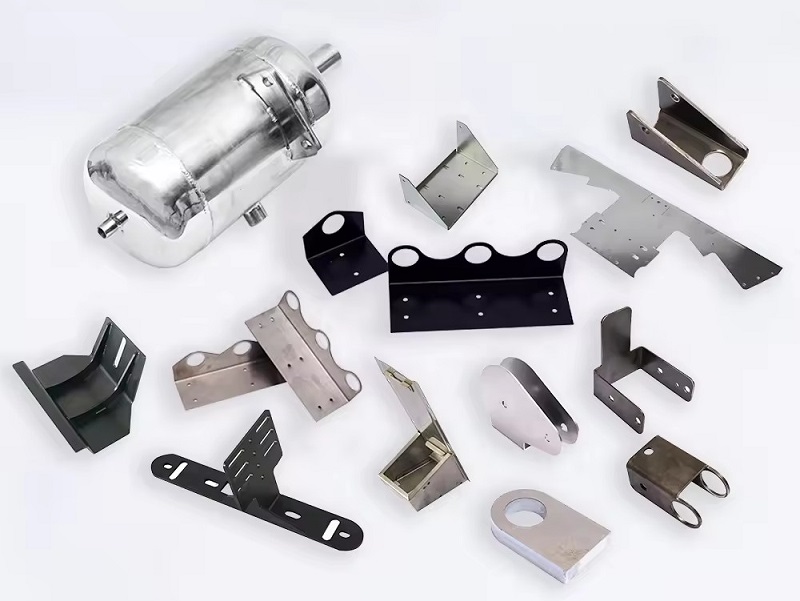

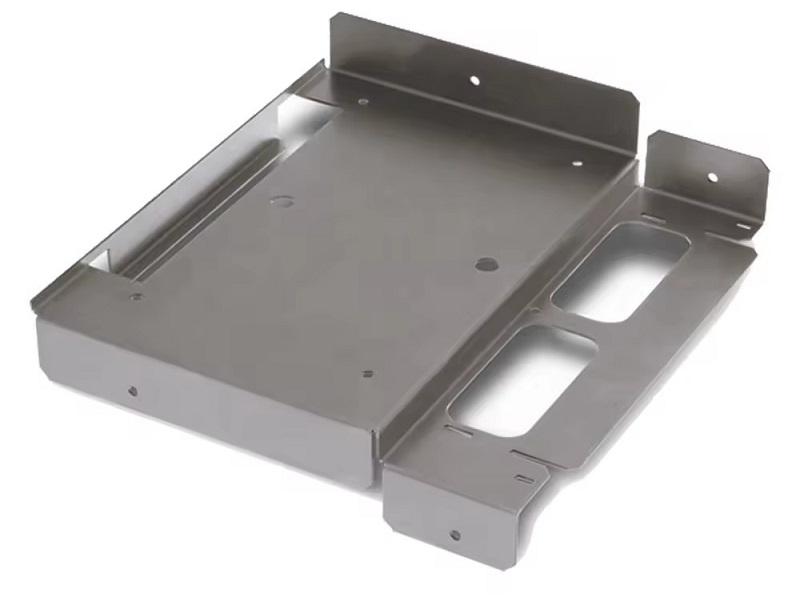

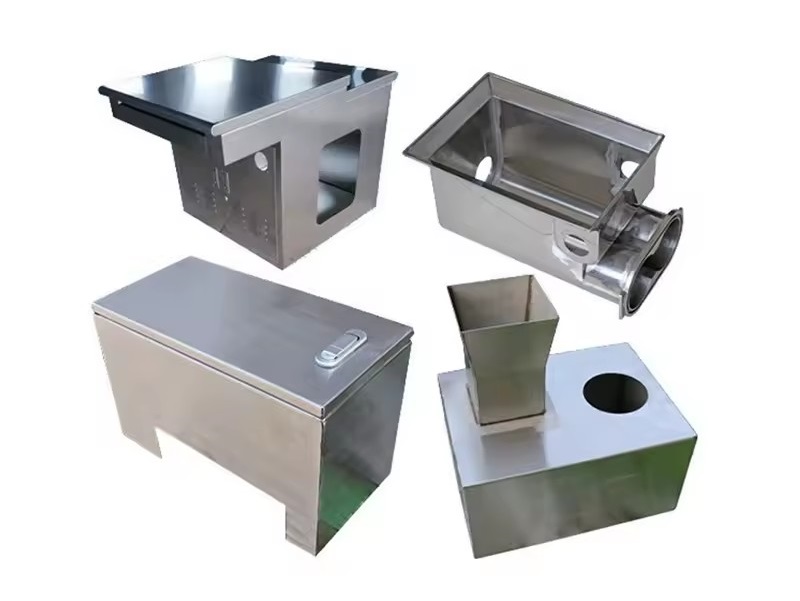

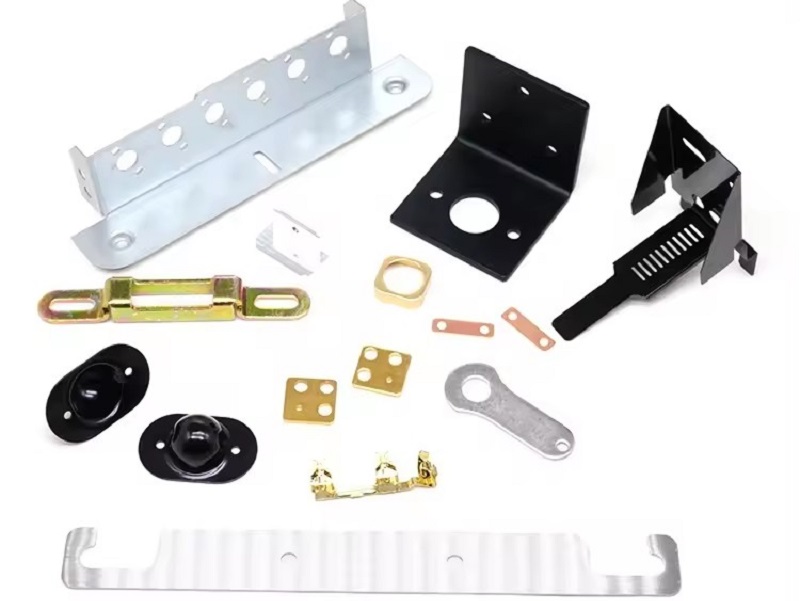

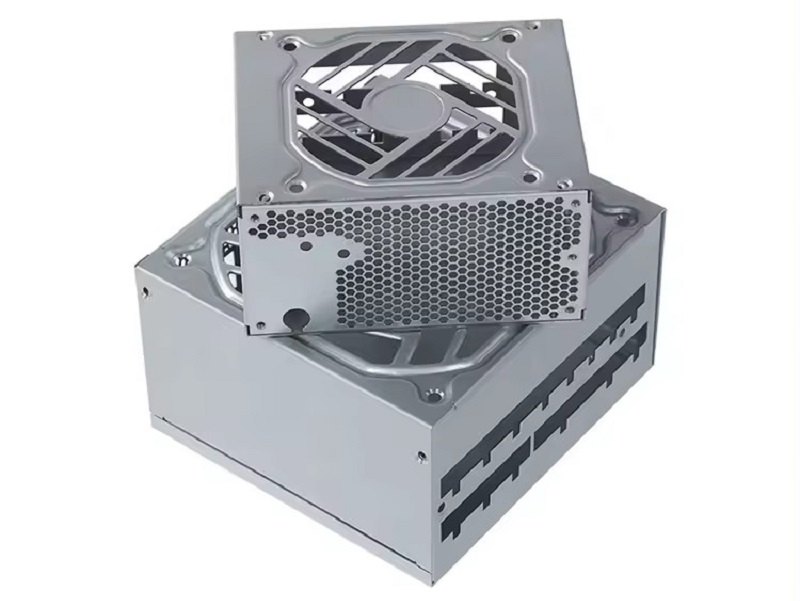

Sheet Metal Fabrication
We provide metal forming, cutting and bending services for the fabrication of sheet metal parts. The automated cutting processes guarantee high precision and quality of ready parts. All parts can be subject to post-processing upon your request: coatings, heat treatment and others.We can also provide certifications (certificate of compliance, raw material certificate, etc.) and inspection reports (CMM, FAIR, measurement report) upon request.
We supply:
-Laser Cutting: CO2, Nd, Nd:Yag
-Plasma Cutting: 2-Axis and 3-Axis
-Waterjet Cutting:Water-Only & Abrasive
-Bending
-Aluminium, Steel, Stainless Steel
-Prototype & Serial Manufacturing
-Express Manufacturing within 20 Days
-Certifications & inspection reports
Sheet Metal Materials
1. Aluminium
Aluminium 5052 / Al-Mg2.5
Aluminium 5083 / Al-Mg4.5Mn
Aluminium 5754 / Al-Mg3
Aluminium 6060 / Al-MgSi
Aluminium 6061 / Al-Mg1SiCu
Aluminium 6082 / Al-Si1Mg
Aluminium 7075 / Al-Zn6MgCu
2. Steel
Steel S235JR
Steel S275JR
Steel S235J2 / S235J2G4
Steel S235J2 / S235J2G4, pickled and oiled
Steel DC01
Steel C45 / EN8
Steel S355J2G3
Steel XC48H1 / C45E
Steel X153CrMo12 / SKD11, annealed
Steel 100MnCrW4 / SKS3, annealed
Steel 25CrMo4 / 708A25
Steel 42CrMo4 / EN19
3. Stainless Steel
Stainless Steel 304 / X5CrNi18.10
Stainless Steel 316L / X2CrNiMo17-12-2
Finishing Options
1.Bead blasting
2.Anodising (type II)
3.Hardcoat anodising (type III)
4.Powder coating
5.Media tumbling
6.Electropolishing
7.Passivation
8.Electroless nickel plating
9.Chromate conversion
10.Zinc coating / Galvanizing
11.Gold plating
12.Silver plating
13.Black oxide
14.Annealing
15.Case-hardening (Carburising)
16.Tempering
17.Through hardening
18.Custom
Manufacturing Specifications & Capabilities
|
Thickness ranges |
Сutting Areas |
|
|
Laser Cutting |
Aluminium: 1.0-6.0 mm |
Thin sheets up to 4 mm thick: 1000×2000 mm, 1250×2500 mm, 1500×3000 mm |
|
Steel: 0.8-20 mm |
Thick sheets over 4 mm thick: 1500×3000 mm, 2000×3000 mm, 1500×6000 mm |
|
|
Stainless Steel: 0.5-16 mm |
||
|
Plasma Cutting |
Aluminium: 1.0-40 mm |
Thin sheets up to 4 mm thick: 1000×2000 mm, 1250×2500 mm, 1500×3000 mm |
|
Steel: 1.0-40 mm |
Thick sheets over 4 mm thick: 1500×3000 mm, 2000×3000 mm, 1500×6000 mm |
|
|
Stainless Steel: 1.0-40 mm |
||
|
Waterjet Cutting |
Aluminium: 2.0-100 mm |
Thin sheets up to 4 mm thick: 1000×2000 mm, 1250×2500 mm, 1500×3000 mm |
|
Steel: 2.0-100 mm |
Thick sheets over 4 mm thick: 1500×3000 mm, 2000×3000 mm, 1500×6000 mm |
|
|
Stainless Steel: 2.0-100 mm |
||
|
Bending |
Aluminium: 0.5-12 mm |
Thin sheets up to 4 mm thick: 1000×2000 mm, 1250×2500 mm, 1500×3000 mm |
|
Steel: 0.5-10 mm |
Thick sheets over 4 mm thick: 1500×3000 mm, 2000×3000 mm, 1500×6000 mm |
|
|
Stainless Steel: 0.5- 8 mm |
