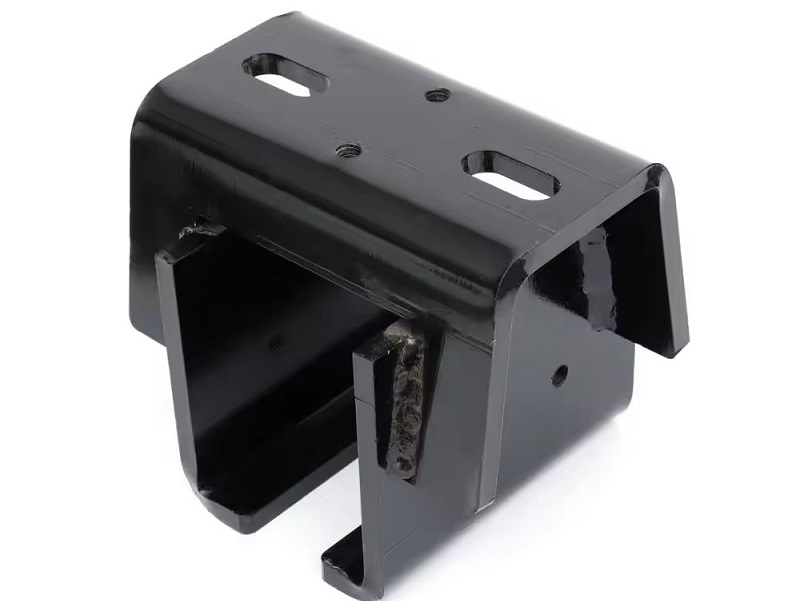

Sheet Metal Fabrication

Home

Sheet Metal Fabrication

We provide metal forming, cutting and bending services for the fabrication of sheet metal parts. The automated cutting processes guarantee high precision and quality of ready parts. All parts can be subject to post-processing upon your request: coatings, heat treatment and others.We can also provide certifications (certificate of compliance, raw material certificate, etc.) and inspection reports (CMM, FAIR, measurement report) upon request.

We supply:

-Laser Cutting: CO2, Nd, Nd:Yag

-Plasma Cutting: 2-Axis and 3-Axis

-Waterjet Cutting:Water-Only & Abrasive

-Bending

-Aluminium, Steel, Stainless Steel

-Prototype & Serial Manufacturing

-Express Manufacturing within 20 Days

-Certifications & inspection reports



Sheet Metal Materials

1. Aluminium

Aluminium 5052 / Al-Mg2.5

Aluminium 5083 / Al-Mg4.5Mn

Aluminium 5754 / Al-Mg3

Aluminium 6060 / Al-MgSi

Aluminium 6061 / Al-Mg1SiCu

Aluminium 6082 / Al-Si1Mg

Aluminium 7075 / Al-Zn6MgCu

2. Steel

Steel S235JR

Steel S275JR

Steel S235J2 / S235J2G4

Steel S235J2 / S235J2G4, pickled and oiled

Steel  DC01

Steel C45 / EN8

Steel S355J2G3

Steel XC48H1 / C45E

Steel X153CrMo12 / SKD11, annealed

Steel 100MnCrW4 / SKS3, annealed

Steel 25CrMo4 / 708A25

Steel 42CrMo4 / EN19

3. Stainless Steel

Stainless Steel 304 / X5CrNi18.10

Stainless Steel 316L / X2CrNiMo17-12-2



Finishing Options

1.Bead blasting

2.Anodising (type II)

3.Hardcoat anodising (type III)

4.Powder coating

5.Media tumbling

6.Electropolishing

7.Passivation

8.Electroless nickel plating

9.Chromate conversion

10.Zinc coating / Galvanizing

11.Gold plating

12.Silver plating

13.Black oxide

14.Annealing

15.Case-hardening (Carburising)

16.Tempering

17.Through hardening

18.Custom



Manufacturing Specifications & Capabilities



Thickness ranges

Сutting Areas

Laser Cutting

Aluminium: 1.0-6.0 mm

Thin sheets up to 4 mm thick: 1000×2000 mm, 1250×2500 mm, 1500×3000 mm

Steel: 0.8-20 mm

Thick sheets over 4 mm thick: 1500×3000 mm, 2000×3000 mm, 1500×6000 mm

Stainless Steel: 0.5-16 mm



Plasma Cutting

Aluminium: 1.0-40 mm

Thin sheets up to 4 mm thick: 1000×2000 mm, 1250×2500 mm, 1500×3000 mm

Steel: 1.0-40 mm

Thick sheets over 4 mm thick: 1500×3000 mm, 2000×3000 mm, 1500×6000 mm

Stainless Steel: 1.0-40 mm



Waterjet Cutting

Aluminium: 2.0-100 mm

Thin sheets up to 4 mm thick: 1000×2000 mm, 1250×2500 mm, 1500×3000 mm

Steel: 2.0-100 mm

Thick sheets over 4 mm thick: 1500×3000 mm, 2000×3000 mm, 1500×6000 mm

Stainless Steel: 2.0-100 mm



Bending

Aluminium: 0.5-12 mm

Thin sheets up to 4 mm thick: 1000×2000 mm, 1250×2500 mm, 1500×3000 mm

Steel: 0.5-10 mm

Thick sheets over 4 mm thick: 1500×3000 mm, 2000×3000 mm, 1500×6000 mm

Stainless Steel: 0.5- 8 mm
